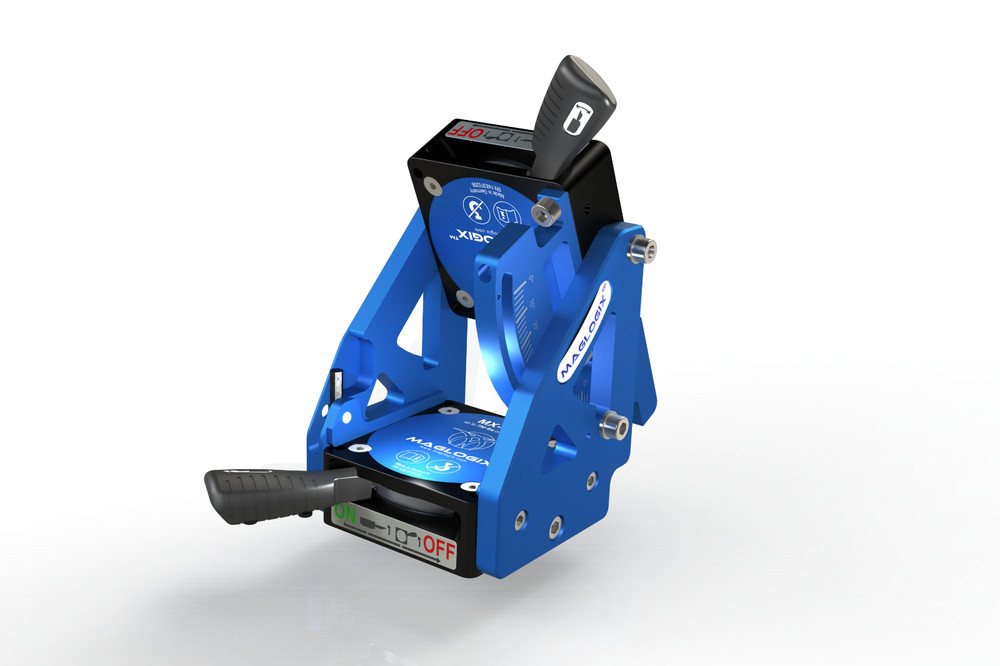

Maglogix Adjustable Angle Magnetic Pipe Alignment Clamp

Specifications

Maglogix MX-750.A.R (Replaces Alfra TMA-600R, 41100.A.R) Adjustable Angle Magnetic Pipe ClampOverview: Maglogix MX-750.A.R (Replaces Alfra TMA-600R, 41100.A.R) Adjustable Angle Magnetic Pipe Clamp uses a patented magnet technology. This compact tool includes two magnetic clamps to offer up to 2 x 750 lbs of load-bearing capacity. The angle of clamping is easily adjusted to any angle. The MX-750.A.R is a must have for everyone who needs to hold or weld heavy work pieces or radius parts together at different angles.Features At A Glance:Highly adjustable angle side plates with a range of 0° to 90° for holding and welding work piecesBuilt-in prism for attaching to pipes and curved surfaces 2 inch (50 mm) to 15-3/4 inch (400 mm) in diameterCan be used to hold flat or radiused materialQuick clamping levers for easy adjustingWear-resistant magnetic contact area made of hardened steel with TiN-coating preventing damages and guaranteeing a long lifetimeLightweight, easy and trouble-free handlingTechnical Specifications:Max. Load Bearing Capacity - Flat Material: 2x750 pounds / 1/4" materialRound Pipe Rating: 20 - 50% of load bearing for flat materialBreakaway Force: >660 pounds / 1/4" materialMin. Material Thickness: 1/32"Item Weight: 6.6 poundsDimensions 6.37"L x 3.93"W x 8.78"HCountry of Origin: USAControl Panel Supply is the place for your electrical assembly products. We offer DIN rail in both steel and aluminum, wiring Duct in both white and gray in wide and thin finger varieties, accessories, copper grounding bar, and DIN rail & wiring duct cutting. Contact us with questions. Thank you!!All Items usually ship within one to two business days.
