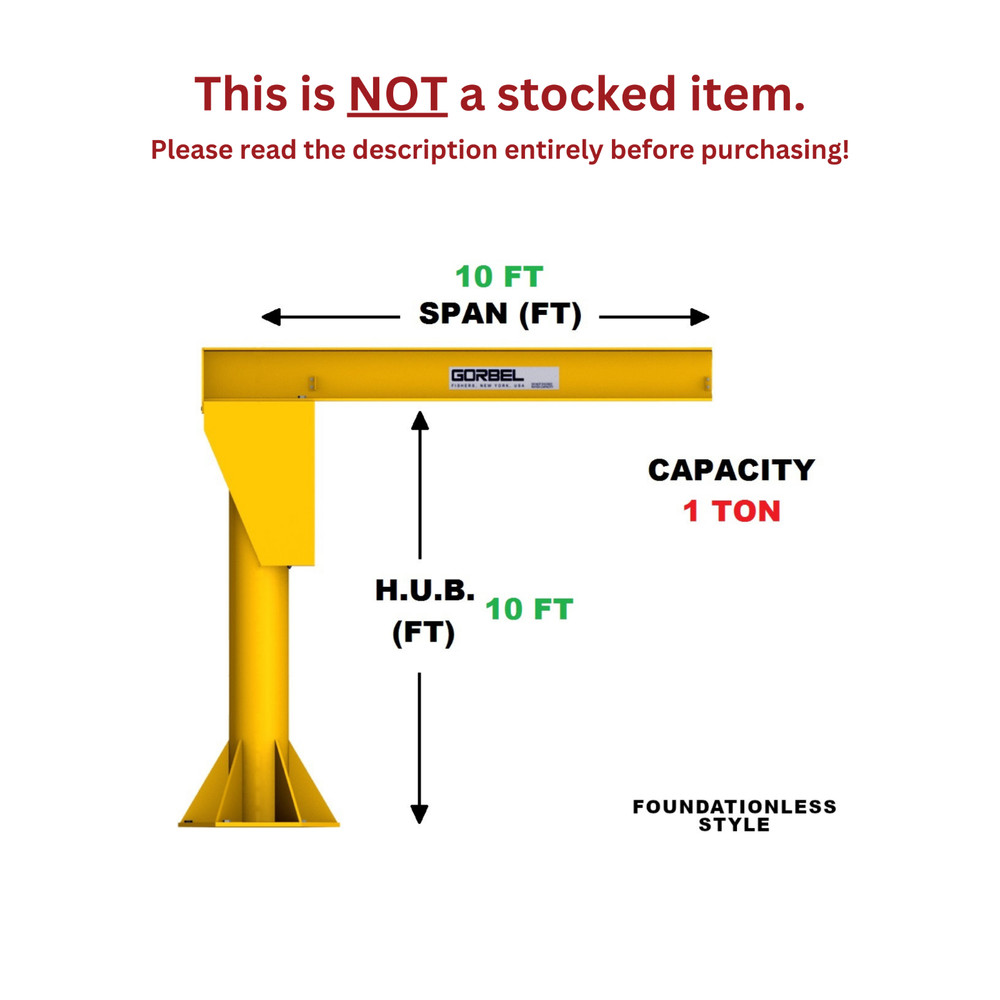

GORBEL FOUNDATIONLESS FREESTANDING JIB CRANE – 1 TON CAP. SPAN 10 FT HUB 10 FT

Specifications

Please read description in its entirety before bidding/purchasing! This item is drop shipped directly from the manufacture. It is a new item that may need to be fabricated before shipping. The typical lead time for this unit is 5-30 working days. Lead times may vary and is determined by a variety of factors. Contact Bohl Crane, Inc. for precise lead times and product availability. Please review our store policies for additional information regarding drop shipped items before bidding/purchasing. GORBEL FOUNDATIONLESS FREESTANDING JIB CRANE - 1 TON CAPACITY, SPAN 10 FT, HUB 10 FT OVERVIEW: Free Standing Jib Cranes are Gorbel’s most versatile crane. They are perfect to place underneath large bridge cranes, in open areas where they can serve several work stations, in outdoor applications such as loading docks, or in machining and assembly operations where they can be overlapped with other jibs to provide staged operation. SPECIFICATIONS: Model Number: FS300-NP6-12-W8 Mounting Style: FS300 Capacity: 1 Ton Weight: 1151 lbs. SPAN: 10 ft. Mast Diameter: 12 in. H.U.B.: 10 ft. Overall Height: 10.675 ft. Beam Size: W8 @ 18 lbs/ft Flange Width: 5.25 in. Cap Channel: None Hoist Allowance: The total hoist allowance is 15% of the capacity or 300 lbs maximum. Overturning Moment: 26.1 k-ft Axial Load: 3.64 kips Anchor Bolt Load: 2.50 kips/bolt Design Impact: 25% Foundation Requirements: 10 ft. sq × 6 in. deep. Centered on a square foot area free from cracks, seams, and walls. 3000 psi wire mesh-reinforced concrete and soil pressure of 2500 psf. Chemical anchor bolts must withstand a minimum of 3470 lbs. pull out force. See photo for additional details NOTE: THIS AUCTION INCLUDES ANCHOR BOLTS & EPOXY NOTE: THIS AUCTION IS FOR THE CRANE ONLY. THE HOIST(S), FESTOONING COMPONENTS, ANCHORING HARDWARE AND OTHER ACCESSORIES ARE NOT INCLUDED (UNLESS OTHERWISE NOTED IN LISTING). PLEASE CONTACT BOHL CRANE FOR MORE INFORMATION REGARDING KITS AND OTHER ACCESSORIES FOR THIS UNIT. This unit comes with a 10 year warranty. Please review the complete warranty policy for additional information. The purchased equipment must meet all requirements presented in the manufacture warranty to be eligible for coverage. If you require a modified design of this unit (different model, measurements, capacities, etc.) please contact Bohl Crane, Inc. We can design variations of this unit and we'll work with you to build the exact unit you need. If you like this product, check out our selection of hoists too! By making an offer/purchasing any product(s), you the buyer agree to all terms, conditions and policies not only on this listing but also on our eBay store website. All of our terms, conditions and policies can be found under the "About" section on the Bohl Crane, Inc. eBay store home page. Our goal at Bohl Crane, Inc. is 100% customer satisfaction. Please email us or call the Toledo office during normal business hours with any questions.
