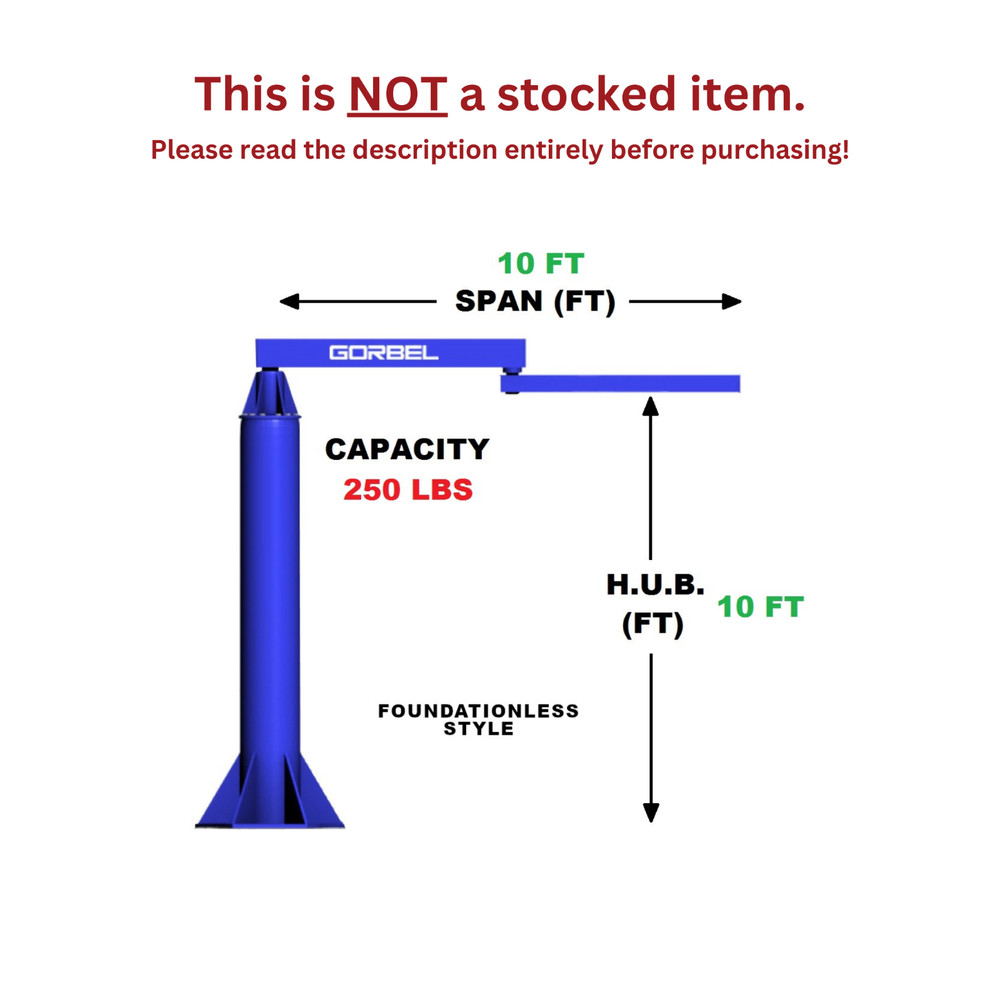

GORBEL FOUNDATIONLESS ARTICULATING JIB CRANE – 250 LB CAP. SPAN 10 FT HUB 10 FT

Specifications

Return Shipping Will Be Paid By	Buyer
All Returns Accepted	Returns Accepted
Item Must Be Returned Within	30 Days
Refund Will Be Given As	Money Back
MPN	AJ360-F-NP6-250-10-10
Brand	Gorbel

Please read description in its entirety before bidding/purchasing! This item is drop shipped directly from the manufacture. It is a new item that may need to be fabricated before shipping. The typical lead time for this unit is 5-15 working days. Lead times may vary and is determined by a variety of factors. Contact Bohl Crane, Inc. for precise lead times and product availability. Please review our store policies for additional information regarding drop shipped items before bidding/purchasing. GORBEL FOUNDATIONLESS ARTICULATING JIB CRANE - 250 LB CAPACITY, SPAN 10 FT, HUB 10 FT OVERVIEW: Gorbel® Articulating Jib Cranes can position loads in places you cannot reach with traditional jibs. They provide easy rotation and consistent responsiveness when positioning loads throughout the crane’s coverage area. Gorbel® Wall/Column Mounted Articulating Jibs can handle up to 200° rotation for the primary boom and up to 360° for the secondary boom. Gorbel’s Free Standing and Ceiling Mounted Articulating Jibs can rotate up to 360° on the primary and secondary booms SPECIFICATIONS: Model Number: AJ360-F-NP6-250-10-10 Capacity: 250 lbs. Weight: 825 lbs. Span: 10 ft. Boom Length: 6 ft. Arm Length: 4 ft. Axial Load: 1.18 kips H.U.B.: 10 ft. Overall Height: 11.3854 ft. Clevis Height: 9.7917 ft. Mast Diameter: 12 in. OT Moment: 4.61 k-ft Anchor Bolt Load: 0.76 kips Boom Assembly: Included Arm Assembly: Included Friction Brakes: Included Clevis Assembly: Included Hoist and Trolley Allowance: The total hoist allowance is 15% of the capacity or 37.50 lbs. maximum. Foundation Requirements: 6 sq ft. x 6 in. deep. Centered on a square foot area free from cracks, seams, and walls. 3000 psi wire mesh-reinforced concrete and soil pressure of 2500 psf. Chemical anchor bolts must withstand a minimum of 3470 lbs. pull out force. See photo for additional details NOTE: THIS AUCTION INCLUDES ANCHOR BOLTS & EPOXY NOTE: THIS AUCTION IS FOR THE CRANE ONLY. THE HOIST(S), FESTOONING COMPONENTS, ANCHORING HARDWARE AND OTHER ACCESSORIES ARE NOT INCLUDED (UNLESS OTHERWISE NOTED IN LISTING). PLEASE CONTACT BOHL CRANE FOR MORE INFORMATION REGARDING KITS AND OTHER ACCESSORIES FOR THIS UNIT. This unit comes with a 10 year warranty. Please review the complete warranty policy for additional information. The purchased equipment must meet all requirements presented in the manufacture warranty to be eligible for coverage. If you require a modified design of this unit (different model, measurements, capacities, etc.) please contact Bohl Crane, Inc. We can design variations of this unit and we'll work with you to build the exact unit you need. If you like this product, check out our selection of hoists too! By making an offer/purchasing any product(s), you the buyer agree to all terms, conditions and policies not only on this listing but also on our eBay store website. All of our terms, conditions and policies can be found under the "About" section on the Bohl Crane, Inc. eBay store home page. Our goal at Bohl Crane, Inc. is 100% customer satisfaction. Please email us or call the Toledo office during normal business hours with any questions.
