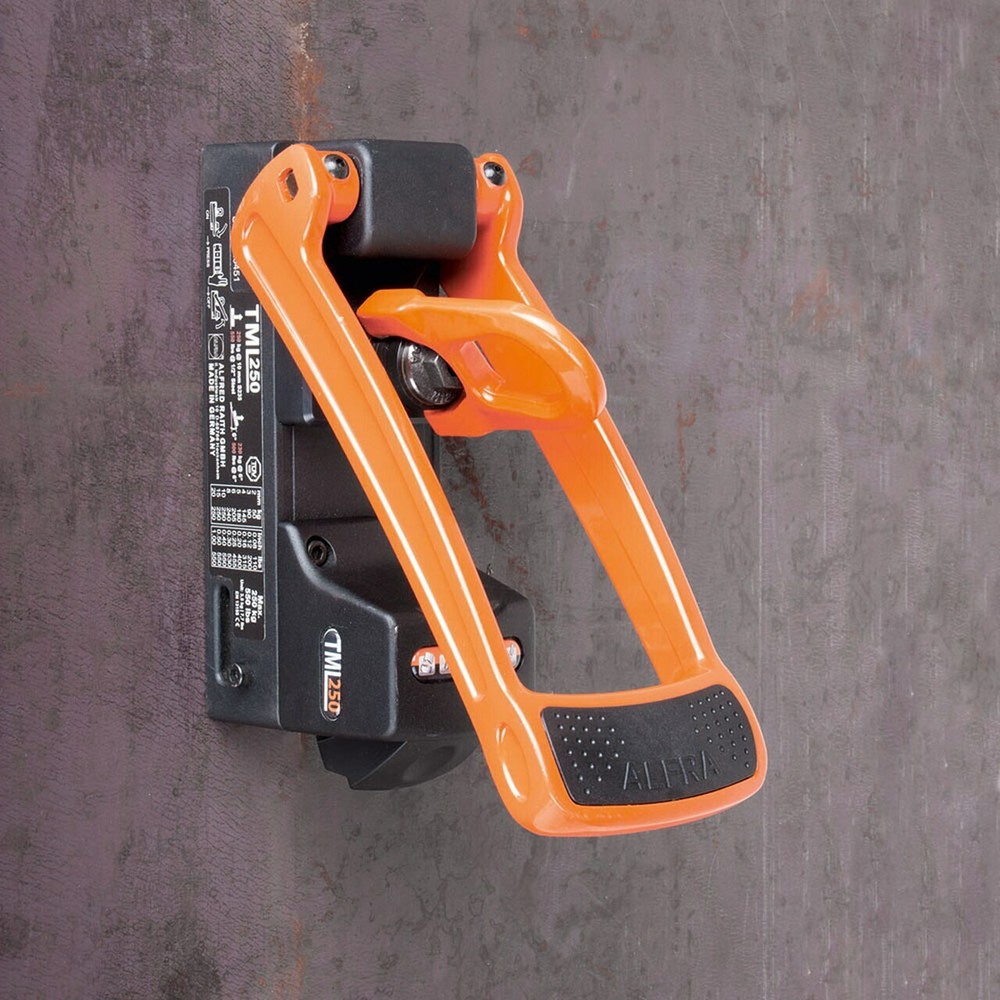

Alfra TML-550 (550 pounds) Lifting Magnet

Specifications

ALFRA TML-550 (550 Pounds) Lifting MagnetProduct Part Number: 41250Overview:ALFRA TML-550 (sold as TML-250 outside North America) Lifting Magnet uses a patented magnet technology (US Patent No. 835066381) to offer up to 550 lbs (250 kg) of load-bearing capacity with a 3:1 safety factor.Features At A Glance:Maximum load-bearing capacity: 550 lbs (200 kg) (with 3:1 safety factor)Outstanding performance on thin-walled materials (operable from just 1/32” (1 mm))Up to 70% less dead weight when to compared to conventional magnets with the same performance.360° rotatable and 180° pivotable load swivel, even under full loadWear-resistant magnetic contact area made of hardened steel with TiN-coating preventing damages and guaranteeing a long lifetimeTechnical Specifications:Max. Load Bearing Capacity - Flat Material: 195 pounds (90 kg) / 1/8" (3mm) material, 550 pounds (250 kg) / 3/8" (10mm) materialBreakaway Force: 1650 pounds / 1/4" materialMin. Material Thickness: 1/16" (2 mm)Item Weight: 7.7 pounds (3.5 kg)Dimensions 9.44"(240mm)L x 3.56" (91 mm)W x 8.5" (216mm)HCountry of Origin: GermanyControl Panel Supply is the place for your electrical assembly products. We offer DIN rail in both steel and aluminum, wiring Duct in both white and gray in wide and thin finger varieties, accessories, copper grounding bar, and DIN rail & wiring duct cutting. Contact us with questions. Thank you!!All Items usually ship within one to two business days.
