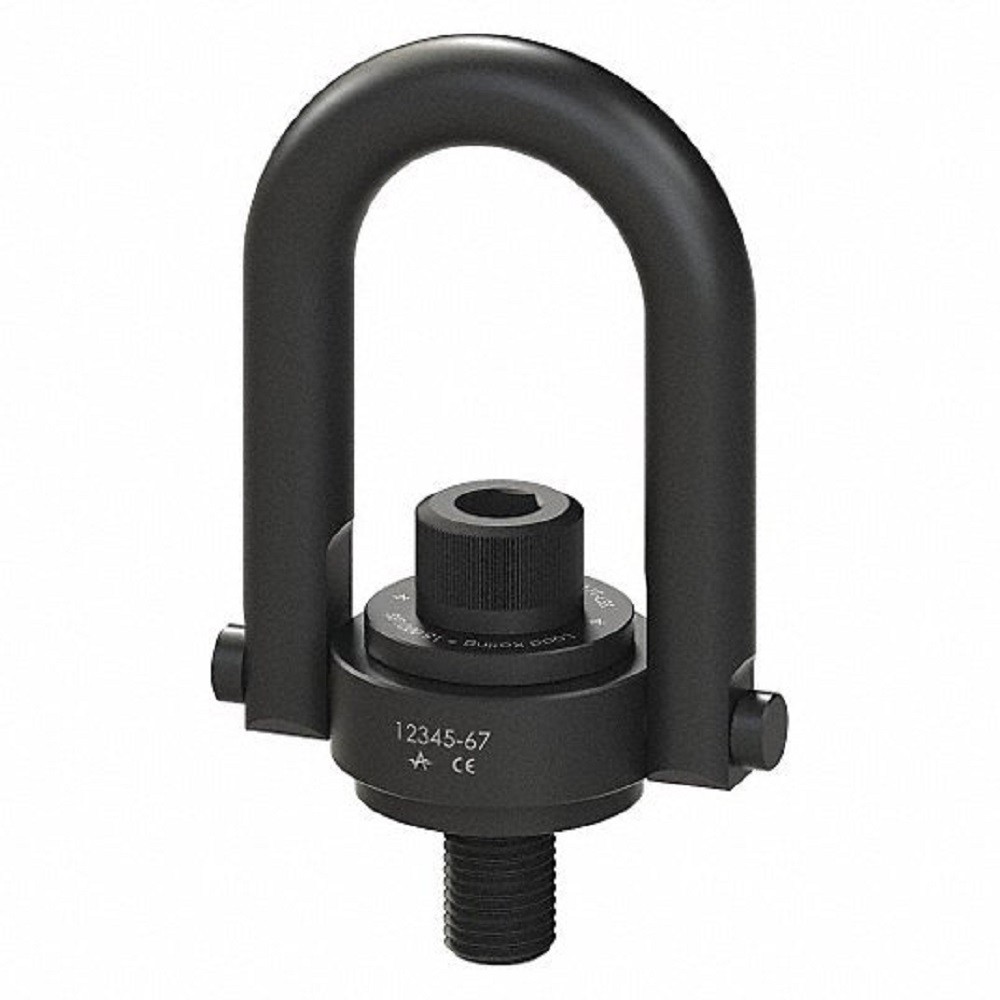

ADB 23503 50000 Lb Working Load 1″ 180° Pivot 360° Swivel Angel Hoist Ring –
ADB 23503 50000 Lb Working Load 1″ 180° Pivot 360° Swivel Angel Hoist Ring –

ADB 23503 50000 Lb Working Load 1″ 180° Pivot 360° Swivel Angel Hoist Ring –

USD 1060.79 USD
SKU: J0xRCrfC
Brand: ADB
MPN: 23503
GTIN: Does not apply
Condition: New
Tags: 1 in 10-1/2 in 16-7/8 in 180° 2-1/2-4 2-1/4 in 2,100 ft-lb 23503 3 in 360° 4 in 4-3/32 in 50,000 lb ADB Adb Hoist Ring ASME B30.26 Bolt-On Hoist Ring Unit United States
Categories: Cranes & Hoists

Specifications

Country Of OriginUnited States
BrandADB
ModelHoist Ring
MPN23503
Unit TypeUnit
Bail Dia.1 in
Pivot180 °
Swivel Angle360 °
Mounting StyleBolt-On
Working Load Limit50,000 lb
Thread Size2-1/2-4
Dimension A3 in
Dimension B10-1/2 in
Dimension C4-3/32 in
Dimension D2-1/4 in
Dimension E4 in
Dimension F16-7/8 in
Installation Torque2,100 ft-lb
StandardsASME B30.26
