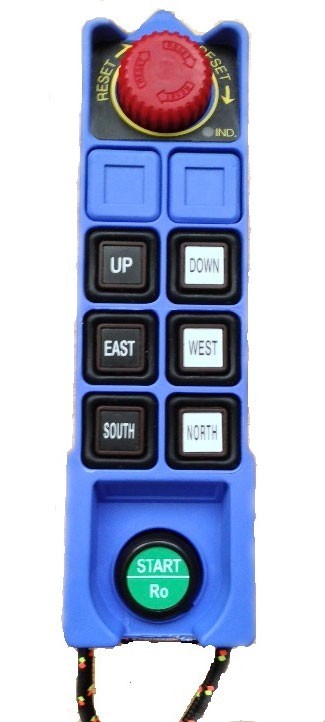

532 Series InMotion Controls 3 motion 2 speed Radio System for Overhead Cranes

Specifications

DetailsThe 532 Series Radio / Remote Control is a versatile System, ideal for complex industrial applications such as overhead crane bridge, trolley and hoist motion control. The compact, 6 and or 8 push button Transmitter fits easily in the user's hand. The 532 Series is a 3-motion, 2-speed radio, suitable for most industrial applications. With a range of 300 feet, the 532 Radio Control system can accommodate larger applications without compromising safety. Installation of the 532 Series is very simple, and both AC and DC voltage configurations available. This model features a sealed start button, with two transmitters and one receiver. 532 Series comes with a standard one-year Warranty against all manufacturer's defects.General SpecificationsEnclosure: IP65 (indoor/outdoor)Structure: FiberglassCrystal-BasedBoth power source and output relays with fusesSynchronous transmission encoding and decodingFrequency: 310.0325 ~ 321.535 MHzOperating temperature: -30° - +75° CRelays: 10A/250VID Code: 32 bitResponse time = 65msRange: 300 feetTRANSMITTER AND RECEIVER SPECIFICATIONSTransmitter6.4" L x 1.9" W x 1.8" HWeight: 0.6 lbs.2 AA size alkaline batteriesOther Specifications:3-stage power indicatorSealed Start ButtonChangeable push button symbolsShock resistant designLow power consumption Receiver6.6" L x 6.1" W x 3.5" HWeight: 3.1 lbs.Input: 110 VACOther Specifications:Alarm and signal light outputPower source detectorAnti-power interrupt circuitShock resistantEnhanced watch-dog circuit3 superheterodyneFrequency deviation tracing circuit
